Drawer Slides
for multiple applications
We specialize in delivering a comprehensive portfolio of high-quality drawer slides that ensure effortless motion in any application. Our range includes solutions from lightweight slides to heavy duty drawer slides, with load capacities ranging from 8 kg up to 2400 kg (18 lbs to 5300 lbs).
What are drawer slides?
A drawer slide (also referred to as a drawer runner or telescopic slide) is a mechanical component designed to ensure smooth, controlled opening and closing of a drawer. It supports the drawer’s weight while allowing it to extend safely and efficiently from its housing. Typically used in pairs, drawer slides are essential in a wide range of applications.
A standard drawer slide consists of two main profiles:
- Inner profile – mounted to the drawer side
- Outer profile – mounted to the cabinet or housing
At Thomas Regout International, we also offer advanced slide systems with intermediate profiles. These enable extended travel ranges, allowing drawers to open further and improving accessibility.
Would like to know more?
Contact us
How to choose the correct drawer slide?
Choosing the right drawer slide is essential to ensure optimal performance, durability, and user experience in your application. The correct selection depends on several key factors, including load capacity, extension type, installation space, and environmental conditions.
1. Determine the required load capacity
One of the most important considerations is how much weight the drawer needs to carry. Industrial drawer slides are available in a wide range of load capacities, from light-duty applications (starting at 8 kg (18 lbs)) to heavy duty drawer slides exceeding 2400 kg (5300 lbs). Always select a slide with sufficient capacity to guarantee safety and long-term reliability.
2. Choose the right extension type
Drawer slides come in different extension options:
- Partial extension – cost-effective, suitable when full access is not required
- Full extension – allows complete access to the drawer contents
- Over-extension – provides extra reach, ideal for deep or hard-to-access applications
3. Consider the installation space
The available mounting space determines the type and size of the slide. Pay attention to:
- Slide length
- Mounting position (side-mounted, under-mounted, etc.)
- Required clearance between drawer and cabinet
4. Evaluate the application environment
Environmental factors can significantly impact performance. For example:
- Corrosive environments may require stainless steel slides
- High temperatures or vibrations demand specialized solutions
- Outdoor or industrial use often calls for heavy-duty designs
5. Define motion and functionality requirements
Additional features can enhance usability and safety:
- Soft-close or self-closing mechanisms
- Lock-in / lock-out functionality
- Smooth and silent operation
6. Match the slide to your application
Every application is different—from furniture and medical equipment to industrial storage and transportation systems. Selecting the right drawer rail ensures reliable movement, longer product lifespan, and an improved user experience.
Create custom drawer slides for your application
At Thomas Regout International, we support you in selecting the ideal drawer slide for your specific application. With our extensive range and engineering expertise, we ensure your system moves smoothly, safely, and efficiently.
When your requirements go beyond standard solutions, our online configurator enables you to design fully customized drawer slides. Simply enter your specifications and create a solution that fits your exact technical and performance needs.

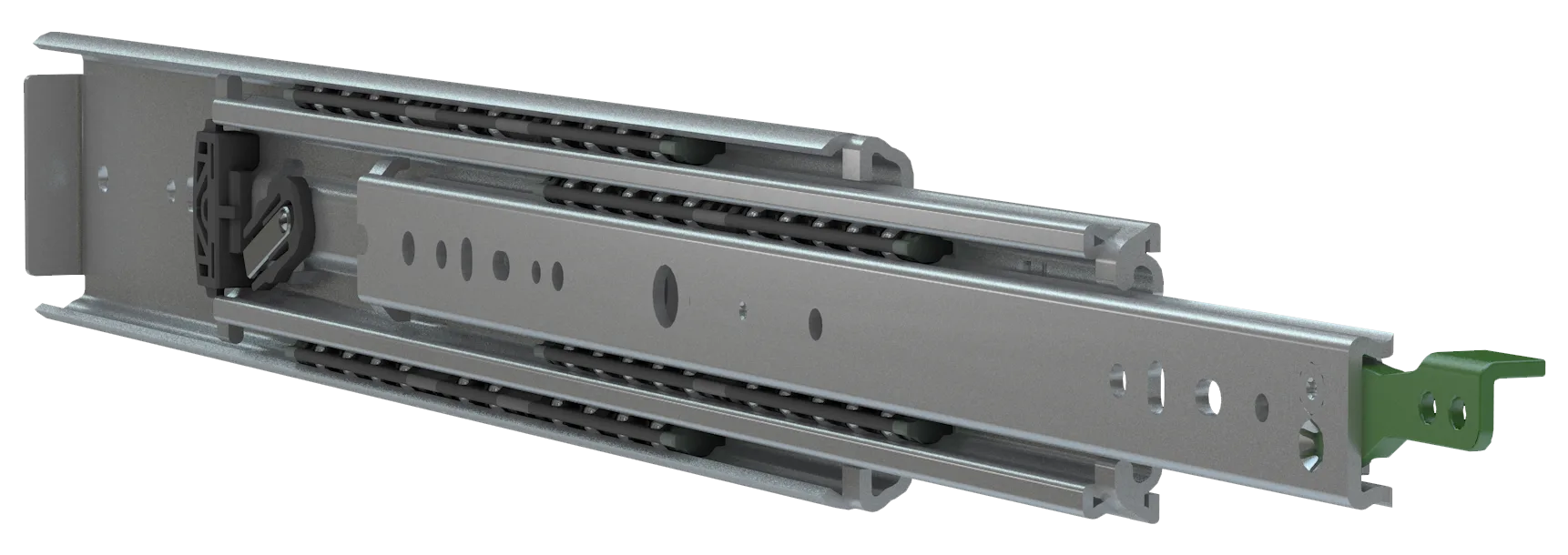

Most chosen drawer slides
How to choose the right extension type of a drawer slide?
Selecting the correct extension type is key to achieving the right balance between accessibility, functionality, and cost. The extension type determines how far a drawer can open and how easily its contents can be accessed.
Partial extension (±75%)
With partial extension slides, the drawer opens to around three-quarters of its full length. This is a cost-effective solution suitable for applications where full access is not required.
Best for: office furniture, residential storage, light-duty applications
Full extension (100%)
Full extension slides allow the drawer to open completely, providing full visibility and easy access to all contents. This is one of the most commonly used solutions.
Best for: kitchens, tool storage, medical equipment
Over-extension (100%+)
Over-extension slides go beyond full extension, allowing the drawer to extend past the cabinet. This makes it easier to reach items at the back of deep drawers.
Best for: industrial applications, heavy-duty storage, service and maintenance environments
Need help with installing drawer slides? Download our installation manual for detailed guidance.
Drawer slide features: enhancing performance and safety
Beyond load capacity and extension type, the right drawer slide features are essential for usability, safety, and performance. Thomas Regout International offers a wide range of options, a selection of which is shown below. For all available possibilities, please contact our Sales Managers.
feature
Bumper with hold closed
Bumper with hold closed
A bumper with hold-closed function of a telescopic slide combines the benefits of dampening with the added feature of keeping the drawer closed. This system has a bumper that not only absorbs impact and reduces noise when the drawer closes but also includes a mechanism that keeps the drawer shut when it’s in the closed position. This feature is ideal for maintaining a tidy and stable appearance while providing added security and durability.
feature
Bumper without hold closed
Bumper without hold closed
A bumper without hold-closed function of a telescopic slide is designed to prevent the drawer from slamming shut and to absorb impacts as it closes. This feature typically uses a bumper placed at the end of the movement of the drawer, which dampens the closing motion, reducing noise. However, unlike systems with a hold-closed function, this bumper does not keep the drawer shut in the closed position. It simply provides closing experience, that enhances durability and comfort while ensuring the drawer closes quietly.
feature
Soft closing
Soft closing
A soft-closing function of a telescopic slide ensures that the drawer closes smoothly and quietly, without slamming shut. This mechanism uses spring-based dampers to slow down the motion of the drawer as it approaches the fully closed position while simultaneously pulling it in. This not only prevents noise and potential damage to the drawer or its contents but also enhances the overall user experience by adding a touch of luxury and ease to everyday use.
feature
Pull-in
Pull-in
A pull-in function of a telescopic slide automatically pulls the drawer fully closed once it is near the closed position. This feature not only enhances the drawer's appearance by keeping it neatly closed but also helps protect the contents inside from dust and damage.
feature
Disconnect
Disconnect
A disconnect function in telescopic slides allows the drawer to be easily separated from its track, enabling quick and effortless removal or maintenance. This feature simplifies installation, enhances accessibility for cleaning or repairs, and reduces downtime in several applications. Additionally, it improves safety by allowing the user to disengage the slide without complex tools, and supports greater flexibility.
feature
Push-to-open
Push-to-open
A push-to-open function of a telescopic slide allows you to open the drawer with a simple push, eliminating the need for handles or pulls. This feature is equipped with a spring-loaded mechanism that, when pressed, gently pops the drawer open. The push-to-open function is ideal for sleek, minimalist designs where you want a clean, handle-free look. It also adds convenience, making it easy to access the drawer even with full or dirty hands.
feature
Lock-in
Lock-in
A lock-in function of a telescopic slide is used to keep the drawer securely closed until you manually release the lock. This feature ensures that the drawer does not open unintentionally, even if your application is moved or tilted. The lock-in mechanism is particularly useful in mobile settings, such as in special vehicles, boats, or workspaces, where stability is crucial.
feature
Lock-out
Lock-out
A lock-out function of a telescopic slide ensures that the drawer remains fully extended and cannot be accidentally pushed back in until the lock is released. To close the drawer, the lock must be manually disengaged, ensuring controlled operation. The lock-out mechanism is especially useful in environments where safety and precision are vital.
feature
Hold-out
Hold-out
A hold-out function of a telescopic slide allows the drawer to remain securely in the open position without sliding back unintentionally. This function is particularly useful when you need to access the contents of the drawer for an extended period of time or when you need both hands free for tasks. This function adds convenience and safety to the daily use of the drawer.
feature
Electric discharge
Electric discharge
An electric discharge function is designed to prevent the build-up of static electricity, which can damage sensitive electronic components or create discomfort when touching the drawer. This feature ensures that the drawer and its contents remain safe from electrostatic discharge (ESD)and is particularly important in environments where electronics or delicate equipment are stored, such as in tech workstations, labs or offices.
feature

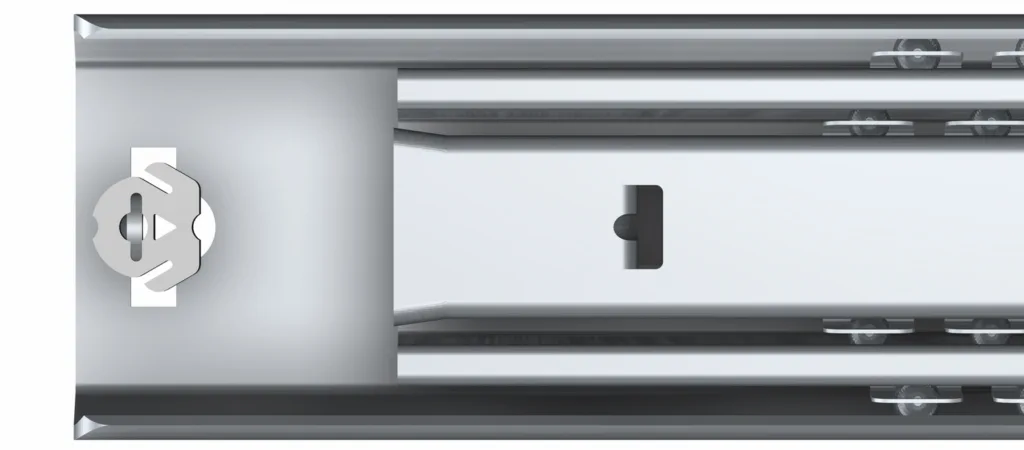

Spring rubber
Spring rubber
A spring rubber within a telescopic provides a tension between lock-in feature and lock-in function of the slide. This tension ensures that the components are securely held in place, effectively eliminating any rattling or unwanted movement during operation, meaning noise reduction and increased stability of the drawer's contents.
feature
Differential movement
Differential movement
The differential movement function of the telescopic slide synchronizes the movement of all slide sections. It eliminates irregular motions and reduces friction, ensuring a quiet and fluid operation. The differential slide is the ideal solution for environments where silent operation is crucial, such as in residential, office, or medical settings.
feature
Rubber stop
Rubber stop
Rubber stop developed for linear guide FlexFit 1529 and FlexFit 1537. Packed per pair.
What applications for drawer slides?

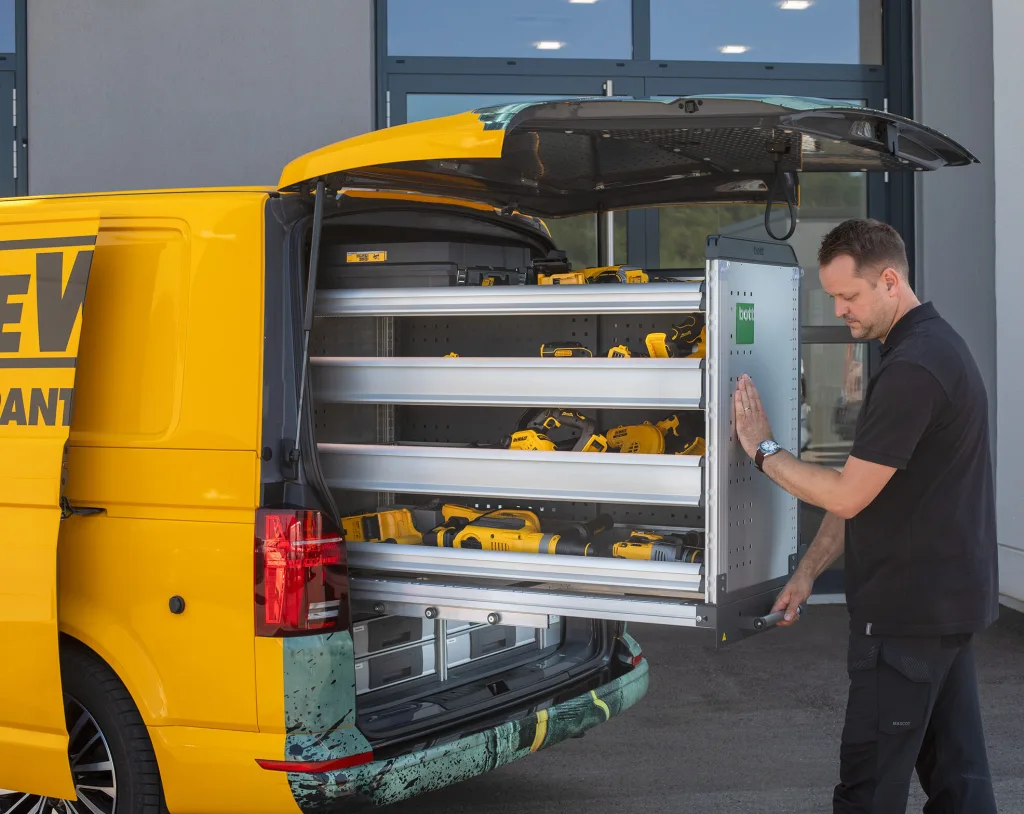

Professional storage
Professional storage applications require reliability, durability, and smooth operation under demanding conditions. Whether it concerns industrial environments, workshops, or service vehicles, drawer slides play a crucial role in ensuring safe and efficient storage. At Thomas Regout International, we provide high-performance drawer slide solutions designed to withstand intensive daily use and high loads. Our slides ensure effortless movement, even in heavy-duty applications, while maintaining stability and safety.
Professional storage systems often demand:
- High load capacity for tools, equipment, and materials
- Full or over-extension for optimal accessibility
- Robust construction for long-term durability
- Integrated features such as lock-in and lock-out for safety

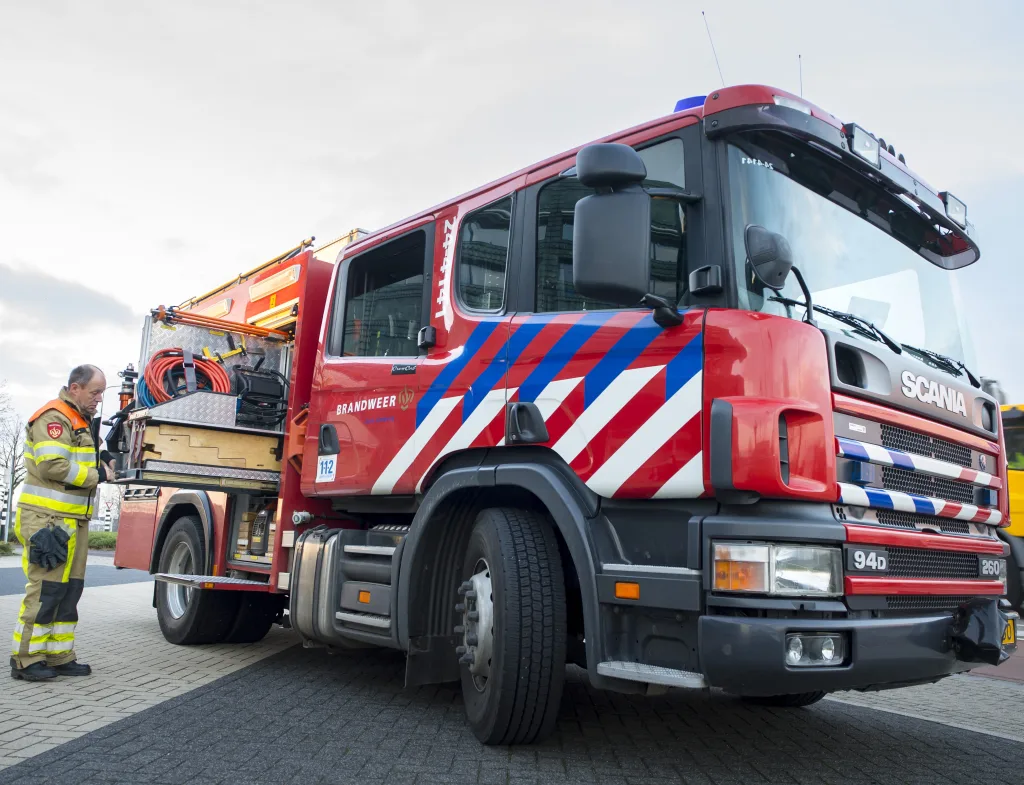

Automotive & Transport
Automotive applications demand precision, durability, and reliability under dynamic conditions. Whether used in service vehicles, emergency units, or onboard storage systems, drawer slides must perform consistently despite vibrations, frequent use, and varying environments. At Thomas Regout International, we provide high-performance drawer slide solutions engineered specifically for the automotive industry. Our slides ensure smooth and controlled movement, even under heavy loads and challenging conditions, contributing to both safety and efficiency.
Automotive storage systems typically require:
- High load capacity for tools, equipment, and technical components
- Secure locking systems such as lock-in and lock-out for safe transport
- Resistance to vibrations and intensive use
- Compact and efficient designs to optimize available space

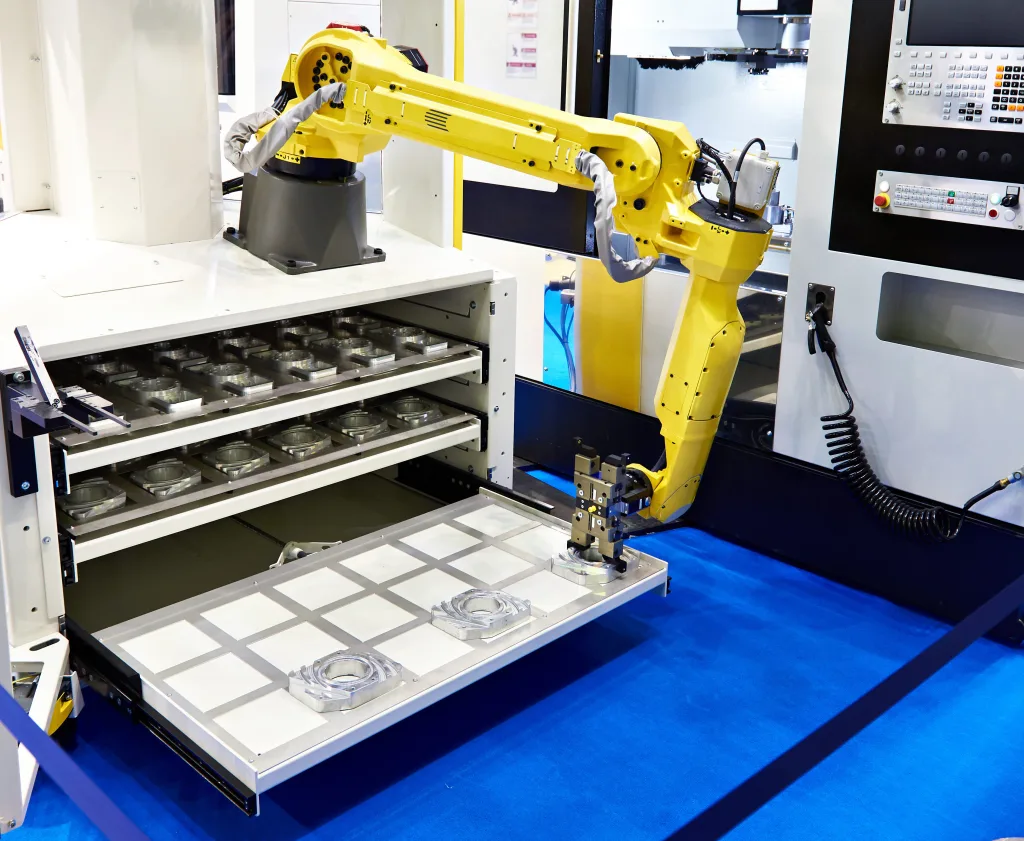

Industry
Industrial applications require robust, reliable, and high-performance solutions that can withstand extreme conditions and continuous use. From machinery and production lines to heavy-duty storage systems, drawer slides must deliver consistent performance under high loads and demanding environments.
At Thomas Regout International, we develop industrial drawer slide solutions engineered for strength, precision, and durability. Our slides are designed to operate smoothly even in the most challenging conditions, ensuring efficiency and reliability in critical processes.
Industrial systems typically require:
- Very high load capacities for heavy equipment and components
- Durable materials suitable for harsh environments
- Smooth and controlled movement under continuous use
- Custom solutions tailored to specific industrial requirements
Furniture
Furniture applications require smooth operation, comfort, and a high-quality user experience. Whether used in medical, residential, office, or commercial interiors, drawer slides play a key role in ensuring functionality, aesthetics, and long-term performance.
We offer drawer slide solutions designed to combine precision, reliability, and ease of use. Our slides enable effortless and silent movement, contributing to a premium look and feel in every furniture application.
Furniture systems typically require:
- Smooth and silent operation for enhanced user comfort
- Soft-close or self-closing features for a premium experience
- Compact and space-efficient designs
- Reliable performance for everyday use
Why choose our drawer slides?
-
Innovation in motion since 1834
With over 190 years of experience, Thomas Regout International is a global leader in linear motion systems, delivering best-in-class products and innovative solutions such as telescopic drawer slides and guiding systems. (Check our Wikipedia page)
-
ISO and IATF certified
Our commitment to quality is embedded in every step of our process. We adhere to strict international standards and are ISO and IATF certified, guaranteeing reliability, consistency, and performance in even the most demanding environments.
-
Engineered for performance
Our drawer slides are designed to deliver smooth, reliable movement under all conditions, from light-duty applications to extreme heavy loads.
-
Tailored to your application
From standard products to customized solutions, we offer a wide range of options to perfectly match your specific requirements.
Not able to find the right information? Try our FAQ:
What load capacities can drawer slides handle?
From 5 kg / 11 lbs up to 2,500 kg / 5511 lbs per pair, depending on slide type, extension length and mounting orientation.
What is the maximum extension of drawer slides?
Thomas Regout International offers partial, full and over-extension slides, including extensions up to and beyond 200% (customer-specific).
What causes drawer slide deflection?
Drawer slide deflection is caused by the bending or vertical movement of the slide when a drawer is extended under load. The amount of deflection depends on factors such as load weight, slide length, extension distance, mounting method, and slide construction.
Can heavy duty drawer slides be customized?
Yes, heavy duty drawer slides can be customized to meet specific application requirements. Common customization options include special lengths, locking systems, soft-close functionality, corrosion-resistant materials, and customized mounting configurations.
Which mounting method provides the highest stability?
Side-mounted drawer slides generally provide the highest stability and load capacity for most applications. However, the optimal mounting method depends on the application design, available space, load distribution, and operational requirements.
Does Thomas Regout International develop customer-specific drawer slides?
Yes. Approximately 85% of telescopic slides are developed as customer-specific solutions through co-engineering. For more information, visit our page on co-creation.
Is Thomas Regout International certified for drawer slides?
Yes. Thomas Regout International is certified according to ISO 9001, ISO 14001 and IATF 16949 and is RoHS and REACH compliant. For more information, visit our Quality page
Which drawer slides are suitable for outdoor applications?
Outdoor applications typically require drawer slides with increased corrosion resistance. Stainless steel drawer slides or specially coated slides are commonly used in outdoor environments where exposure to moisture, dirt, and temperature fluctuations can affect performance.
What is the lifespan of industrial drawer slides?
The lifespan of industrial drawer slides depends on factors such as load capacity, operating frequency, environmental conditions, installation quality, and maintenance. High-quality slides designed for the correct application can perform reliably over tens of thousands of operating cycles.
