TR-4024 SUPREME

DOUBLE T-DESIGN IN STEEL (C45C+E)

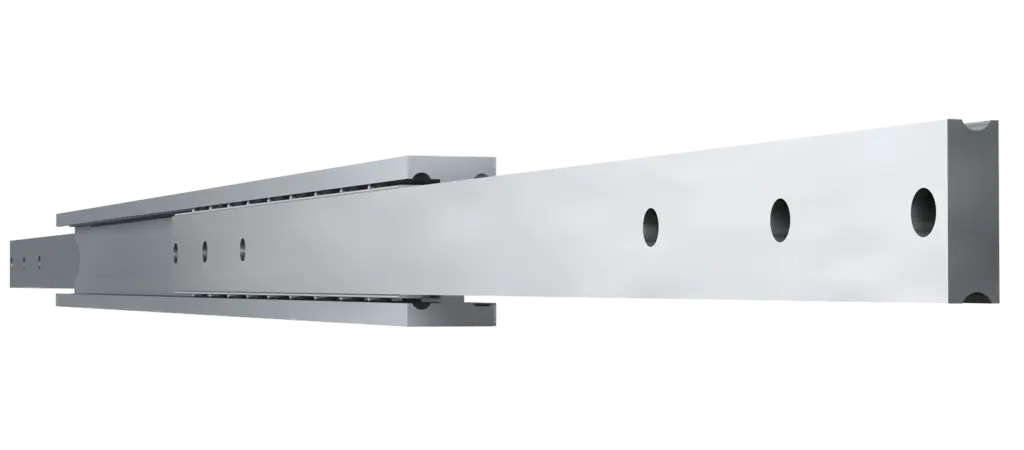

TR 4024 SUPREME double T design in steel C45 C E
Units

Double T-design, extra heavy duty industrial telescopic drawer slide, manufactured from cold drawn steel. This solid beam slide has a maximum load capacity of 350 kg/771.6 lbs.

Specifications

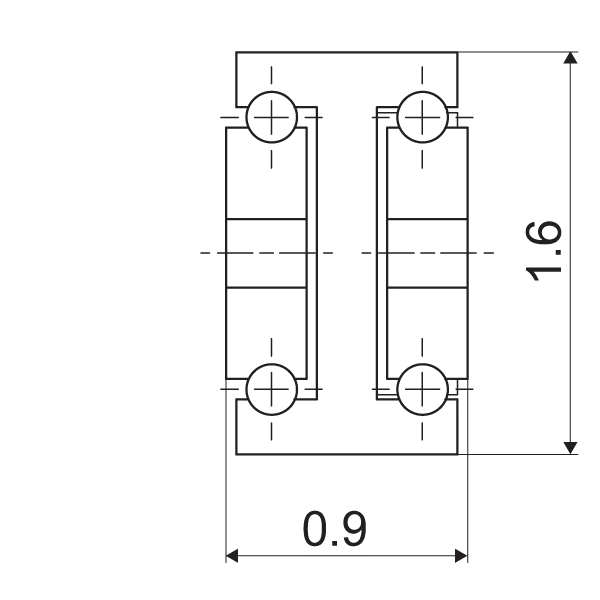

Telescopic slide - Cross section - TR - 4024 SUPREME DOUBLE T-DESIGN IN STEEL (C45C+E) Telescopic slide - Cross section - TR - 4024 SUPREME DOUBLE T-DESIGN IN STEEL (C45C+E)
Load capacity
188 - 350 kg 414 - 772 lbs
Height
40 mm 1.57 in
Width
24 mm 0.94 in
Fixation (cabinet side)
Metal
M8
Fixation (drawer side)
Metal
M8
Downloads
metric_Datasheet 13840 Sxx imperial_Datasheet 13840 Sxx

Technical information

Article number
Length Length
Travel
Load capacity
13840S01
200 mm
7.87 in
200 mm
7.87 in
270 kg
595 lbs
13840S02
250 mm
9.84 in
250 mm
9.84 in
280 kg
617 lbs
13840S03
300 mm
11.81 in
300 mm
11.81 in
290 kg
639 lbs
13840S04
350 mm
13.78 in
350 mm
13.78 in
300 kg
661 lbs
13840S05
400 mm
15.75 in
400 mm
15.75 in
310 kg
683 lbs
13840S06
450 mm
17.72 in
450 mm
17.72 in
320 kg
705 lbs
13840S07
500 mm
19.69 in
500 mm
19.69 in
330 kg
728 lbs
13840S08
550 mm
21.65 in
550 mm
21.65 in
350 kg
772 lbs
13840S09
600 mm
23.62 in
600 mm
23.62 in
340 kg
750 lbs
13840S10
650 mm
25.59 in
650 mm
25.59 in
320 kg
705 lbs
13840S11
700 mm
27.56 in
700 mm
27.56 in
300 kg
661 lbs
13840S12
750 mm
29.53 in
750 mm
29.53 in
290 kg
639 lbs
13840S13
800 mm
31.5 in
800 mm
31.5 in
280 kg
617 lbs
13840S14
850 mm
33.46 in
850 mm
33.46 in
270 kg
595 lbs
13840S15
900 mm
35.43 in
900 mm
35.43 in
250 kg
551 lbs
13840S16
950 mm
37.4 in
950 mm
37.4 in
230 kg
507 lbs
13840S17
1000 mm
39.37 in
1000 mm
39.37 in
220 kg
485 lbs
13840S18
1050 mm
41.34 in
1050 mm
41.34 in
210 kg
463 lbs
13840S19
1100 mm
43.31 in
1100 mm
43.31 in
200 kg
441 lbs
13840S20
1150 mm
45.28 in
1150 mm
45.28 in
190 kg
419 lbs
13840S21
1200 mm
47.24 in
1200 mm
47.24 in
188 kg
414 lbs

More than a product

Our approach complements our products. Partner with us, and you'll find a reliable teamplayer who works alongside you, thinking with you every step of the way!

Co-creation
Quality
Sustainability
Factory of the Future

fixations

Threaded holes

Threaded holes provide an integrated fastening solution, allowing the telescopic slide to be securely mounted using screws. This ensures precise alignment and a firm attachment to the surrounding construction or mounting surface.

Threaded holes
