TR-5030 SUPREME

DOUBLE T-DESIGN IN STEEL (C45C+E)

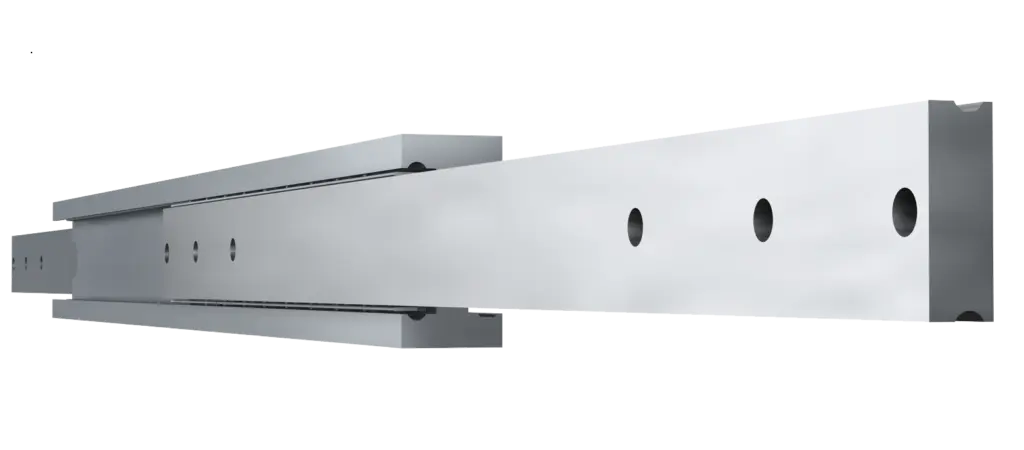

TR 5030 SUPREME double T design in steel C45 C E
Units

Double T-design, extra heavy-duty telescopic drawer with a load capacity up to 420 kg/925.9 lbs. This solid beam slide is manufactured from cold drawn steel is designed for industrial purposes.

Specifications

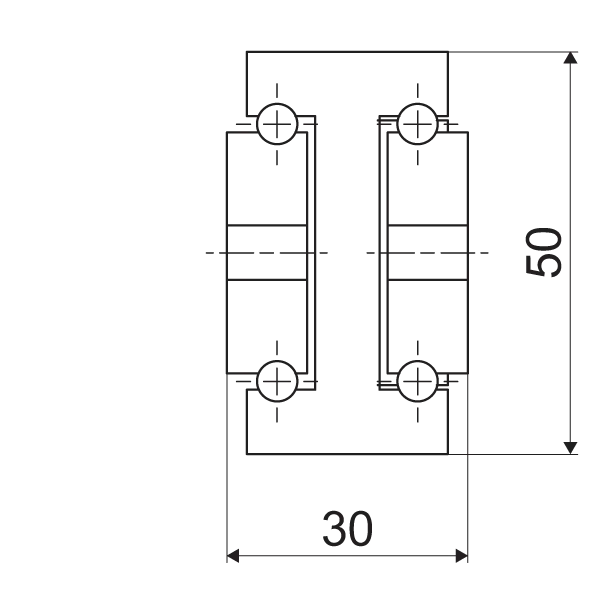

Telescopic slide - Cross section - TR - 5030 SUPREME DOUBLE T-DESIGN IN STEEL (C45C+E) Telescopic slide - Cross section - TR - 5030 SUPREME DOUBLE T-DESIGN IN STEEL (C45C+E)
Load capacity
290 - 420 kg 639 - 926 lbs
Height
50 mm 1.97 in
Width
30 mm 1.18 in
Fixation (cabinet side)
Metal
M8
Fixation (drawer side)
Metal
M8
Downloads
metric_Datasheet 13850 Sxx imperial_Datasheet 13850 Sxx

Technical information

Article number
Length Length
Travel
Load capacity
13850S01
200 mm
7.87 in
200 mm
7.87 in
340 kg
750 lbs
13850S02
250 mm
9.84 in
250 mm
9.84 in
350 kg
772 lbs
13850S03
300 mm
11.81 in
300 mm
11.81 in
360 kg
794 lbs
13850S04
350 mm
13.78 in
350 mm
13.78 in
370 kg
816 lbs
13850S05
400 mm
15.75 in
400 mm
15.75 in
380 kg
838 lbs
13850S06
450 mm
17.72 in
450 mm
17.72 in
390 kg
860 lbs
13850S07
500 mm
19.69 in
500 mm
19.69 in
400 kg
882 lbs
13850S08
550 mm
21.65 in
550 mm
21.65 in
410 kg
904 lbs
13850S09
600 mm
23.62 in
600 mm
23.62 in
420 kg
926 lbs
13850S10
650 mm
25.59 in
650 mm
25.59 in
410 kg
904 lbs
13850S11
700 mm
27.56 in
700 mm
27.56 in
400 kg
882 lbs
13850S12
750 mm
29.53 in
750 mm
29.53 in
390 kg
860 lbs
13850S13
800 mm
31.5 in
800 mm
31.5 in
380 kg
838 lbs
13850S14
850 mm
33.46 in
850 mm
33.46 in
370 kg
816 lbs
13850S15
900 mm
35.43 in
900 mm
35.43 in
360 kg
794 lbs
13850S16
950 mm
37.4 in
950 mm
37.4 in
350 kg
772 lbs
13850S17
1000 mm
39.37 in
1000 mm
39.37 in
340 kg
750 lbs
13850S18
1050 mm
41.34 in
1050 mm
41.34 in
330 kg
728 lbs
13850S19
1100 mm
43.31 in
1100 mm
43.31 in
320 kg
705 lbs
13850S20
1150 mm
45.28 in
1150 mm
45.28 in
310 kg
683 lbs
13850S21
1200 mm
47.24 in
1200 mm
47.24 in
290 kg
639 lbs

More than a product

Our approach complements our products. Partner with us, and you'll find a reliable teamplayer who works alongside you, thinking with you every step of the way!

Co-creation
Quality
Sustainability
Factory of the Future

fixations

Threaded holes

Threaded holes provide an integrated fastening solution, allowing the telescopic slide to be securely mounted using screws. This ensures precise alignment and a firm attachment to the surrounding construction or mounting surface.

Threaded holes
